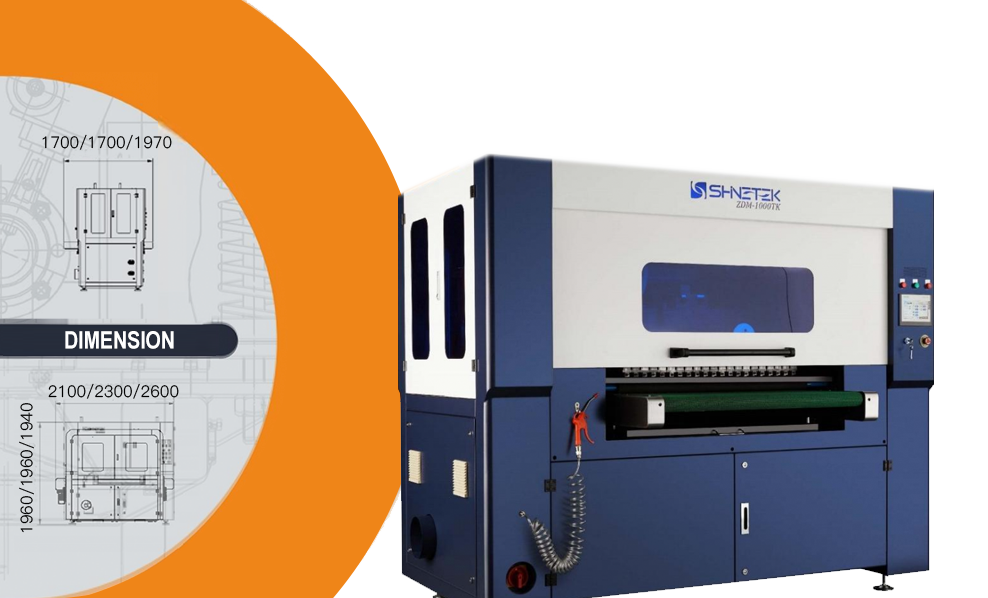

TKSeries

SANDING BELT, BLOCK-SHAPED SANDING BRUSH DEBURRING MACHINE

Removal of large slags of laser cutting, deburring and rounding for workpiece with multiple holes and is deformed
  • Applicable MaterialCarbon Steel,Stainless Steel,Copper,Aluminum,etc.
  • Station CombinationCombination of triangular sanding belt(T)+block-shaped sanding brush (K)
  • Conveying And FixingBelt conveying,press rollers fixation
    MTK is optional for CS plate,conveying belt+magnetic fixation
  • Processing ResultRound and smooth contour,long straight line pattern surface
Features
  • Remove slags,soft and hard burrs from contour edges
  • Internal and external contour rounding
  • Memory of process parameters
  • Intelligent maintenance reminding
  • Dynamic balance system of sanding belt
  • Intelligent perception protection
  • Automatic compensation of abrasive(optional)
  • Abrasive replacement reminding(optional)
Technical Parameters
Working Width 800mm/1000mm/1300mm
Working Thickness No Magnetic 0.5-100mm
Magnetic 2-100mm
Conveyor Speed 0.8-4m/min(frequency control)
Sanding Belt Speed 8-20m/s(frequency control)
Sanding Brush Speed 7.5m/s
Rated Voltage AC 380V/50Hz
MAX.POWER No Magnetic 13/13/17.5kwe
Magnetic 18KW/17KW/21.5KW
Compressed Air 0.6-0.8Mpa
Weight 2000kg/2200kg/3000kg
Sample Parts Photo
